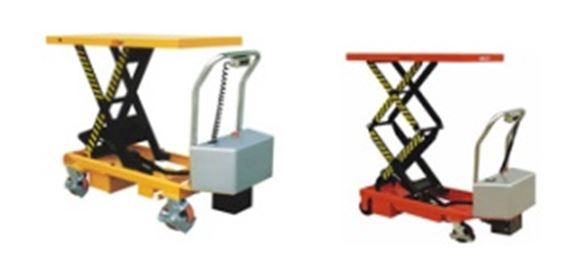

Electric Scissor Lift Table Truck





Model KEST-30 KEST-50 KEST-75 KEST-35
Brand Kamtech Kamtech Kamtech Kamtech
Capacity (kg) 300 kg 500 kg 750 kg 350 kg
Maximum table
height (mm)
880 1025 1025 1300
Minimum table
height (mm)
290 440 420 370
The dimension
of table size (mm)
815x500x50 1010x520x50 1000x510x55 910x500x53
Caster wheel
(mm)
Φ 125×40 Φ 150×48 Φ 147×50 Φ 125×40
Overall length
(mm)
1145 1305 1345 1210
Height of the
handle (mm)
920 970 935 920
Lifting speed
with load/without load (mm)
65/94 65/94 70/80 90/110
Lowering speed
with load/without load(mm)
98/74 98/74 50/35 100/90
Lifting cycle
(fully charged)
120 100 100 100
Batteryx2
(vah)
12×21 12×21 12×21 12×24
Vertical
travel h4 (mm)
590 585 550 930
Lifting motor
(DC24VKW)
0.8 0.8 0.8 0.8
Charger
(built-in)24V4A (hr)
8.5 8.5 8.5 8.5
Approx.lifting
speed
10 10 10 10
Net weight
(kg)
115 157 160 142
